Gain more re-saw capacity, greater throat depth, and the horsepower you need with this Jet® JWBS-15 steel frame bandsaw. Tackle bigger boards, create smoother edges and master intricate cuts. This bandsaw has a heavy-duty cast-iron fence system built to give you the sturdiness and support you need for every project and a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. Engineered to build great projects through superior performance.
Bandsaw Specs: What They Mean & Why They Matter:
- Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.
- Resaw Height – The maximum board thickness the saw can slice vertically.
- Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.
- Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.
- Table Size – Affects how well the saw supports and stabilizes your workpiece.
- Construction Material – Heavier material better absorbs vibration and adds stability.
Features:
- 21-1/2 x 16" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides

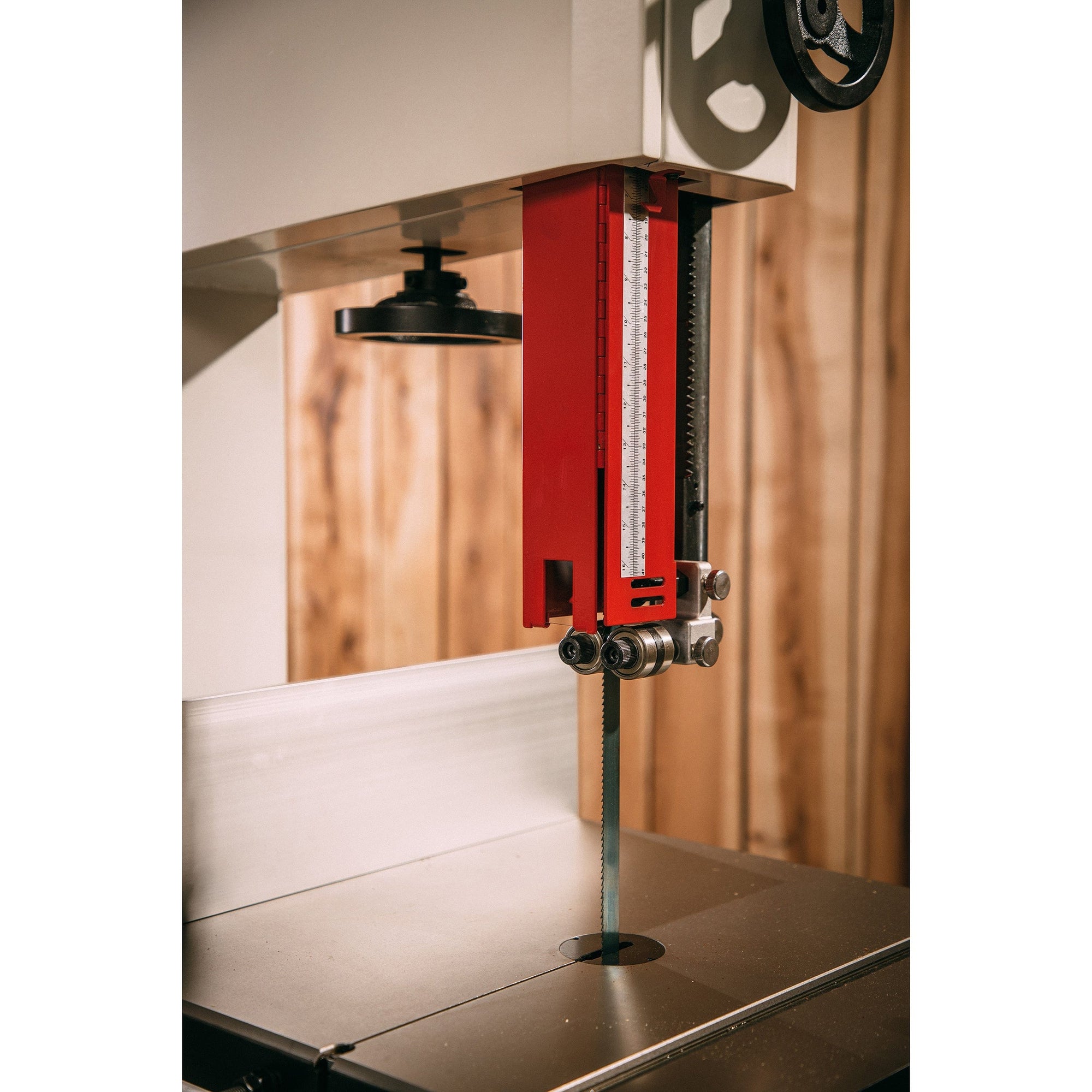

- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking

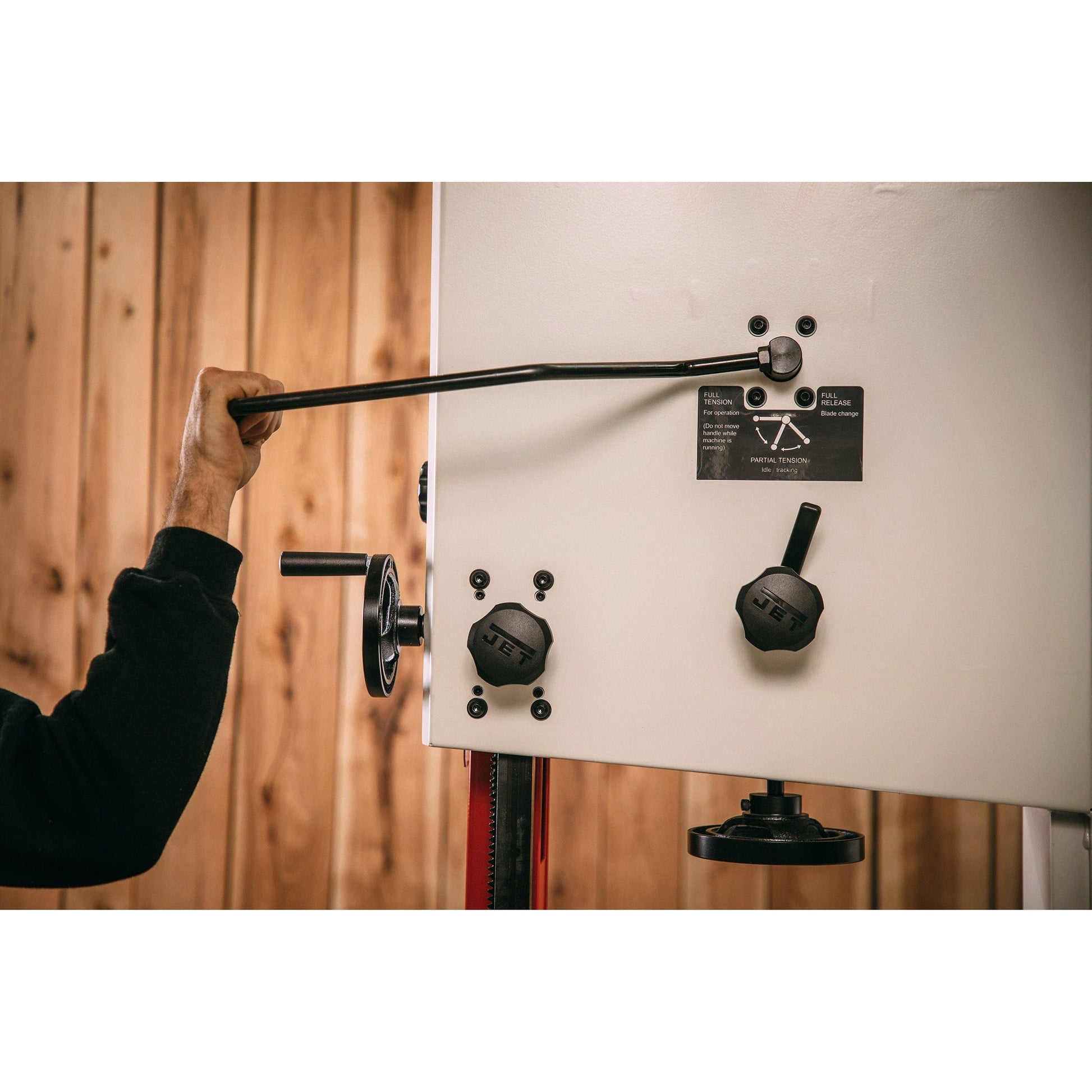

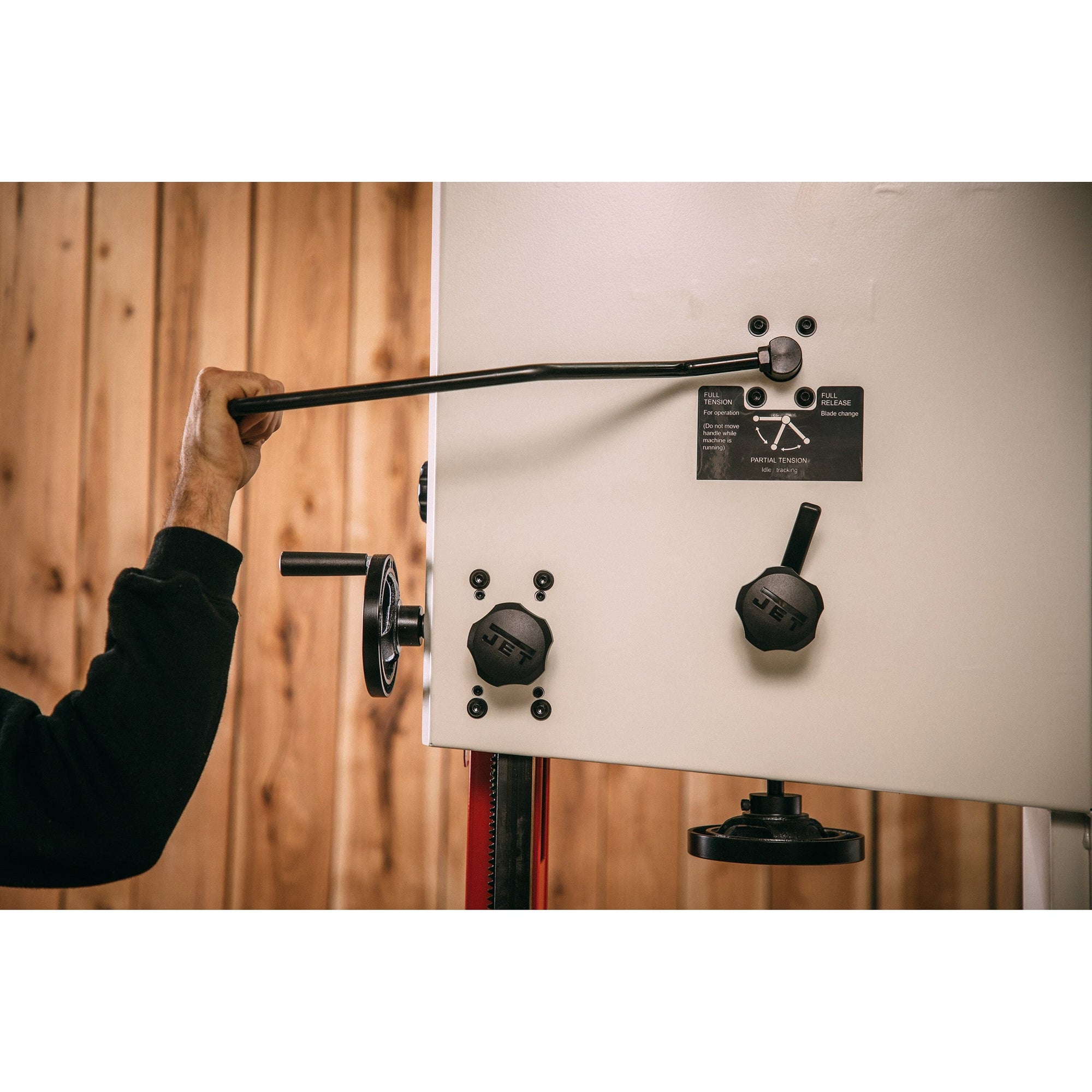

- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

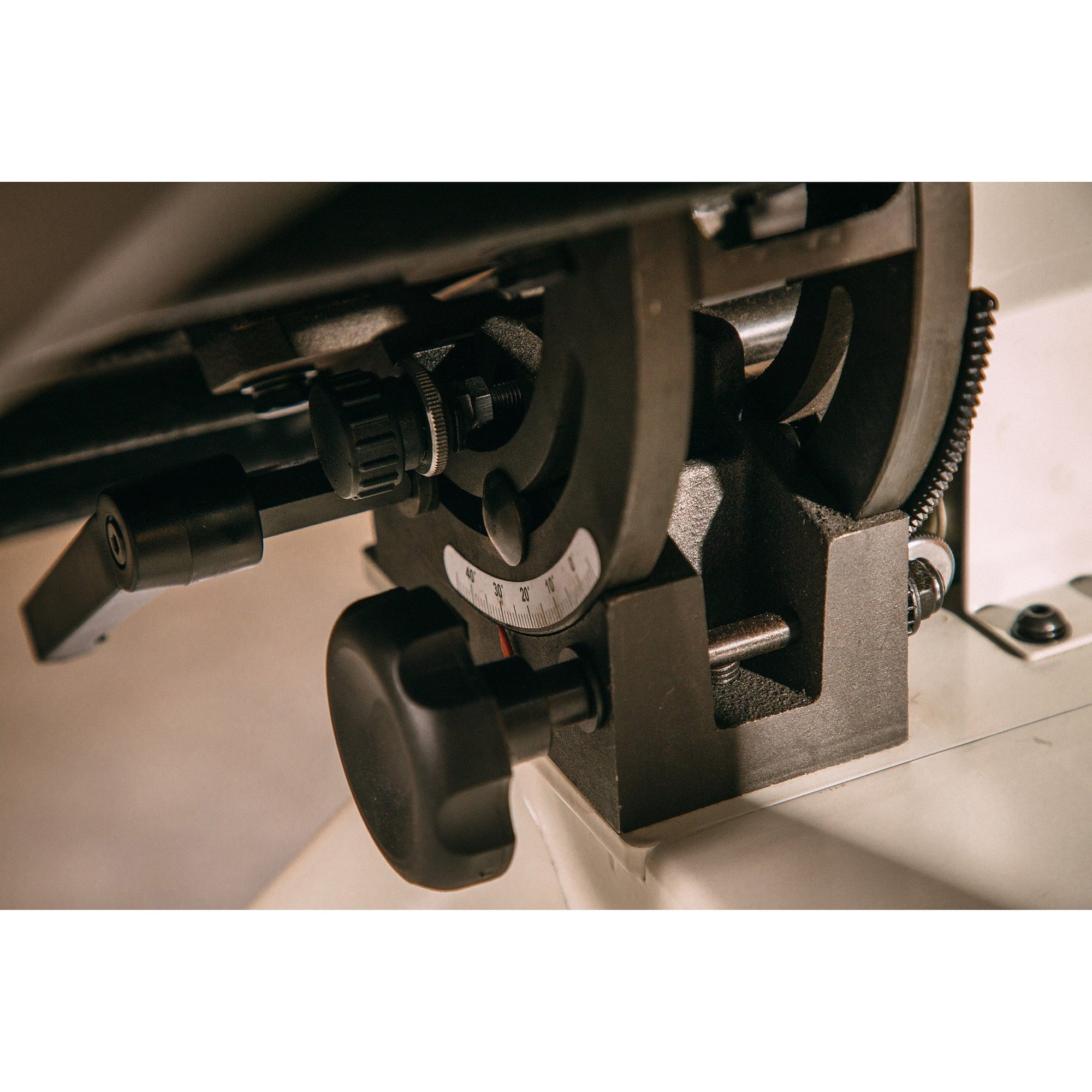

- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
-
Conveniently located dual 4" dust collection ports catch dust and chips at the source
Specifications:
- Motor HP: 3 HP
- Voltage: 230V
- Phase: 1 PH
- Amps (if applicable): 30A
- Max Resaw Height: 14" Max Cutting Width: 14-1/8"
- Wheel Size: 14-¾"
- Wheel Material: Cast Iron
- Quick Blade Release: Yes
- Blade Length: 133"
- Blade Width Range: 1/8" - 1"
- Blade Speed: 3,100 SFPM
- Blade Guide Type: Tool-less adjustable
- Table Size: 21-1/2" x 16"
- Table Tilt (L/R Degree): 5° - 45°
- Table Material: Cast Iron
- Dust Port Size: 4" (2)
- Height: 72"
- Footprint: 29-1/2" L x 32" x 74"
- Warranty Information: 5-Year Limited Warranty
What's Included:

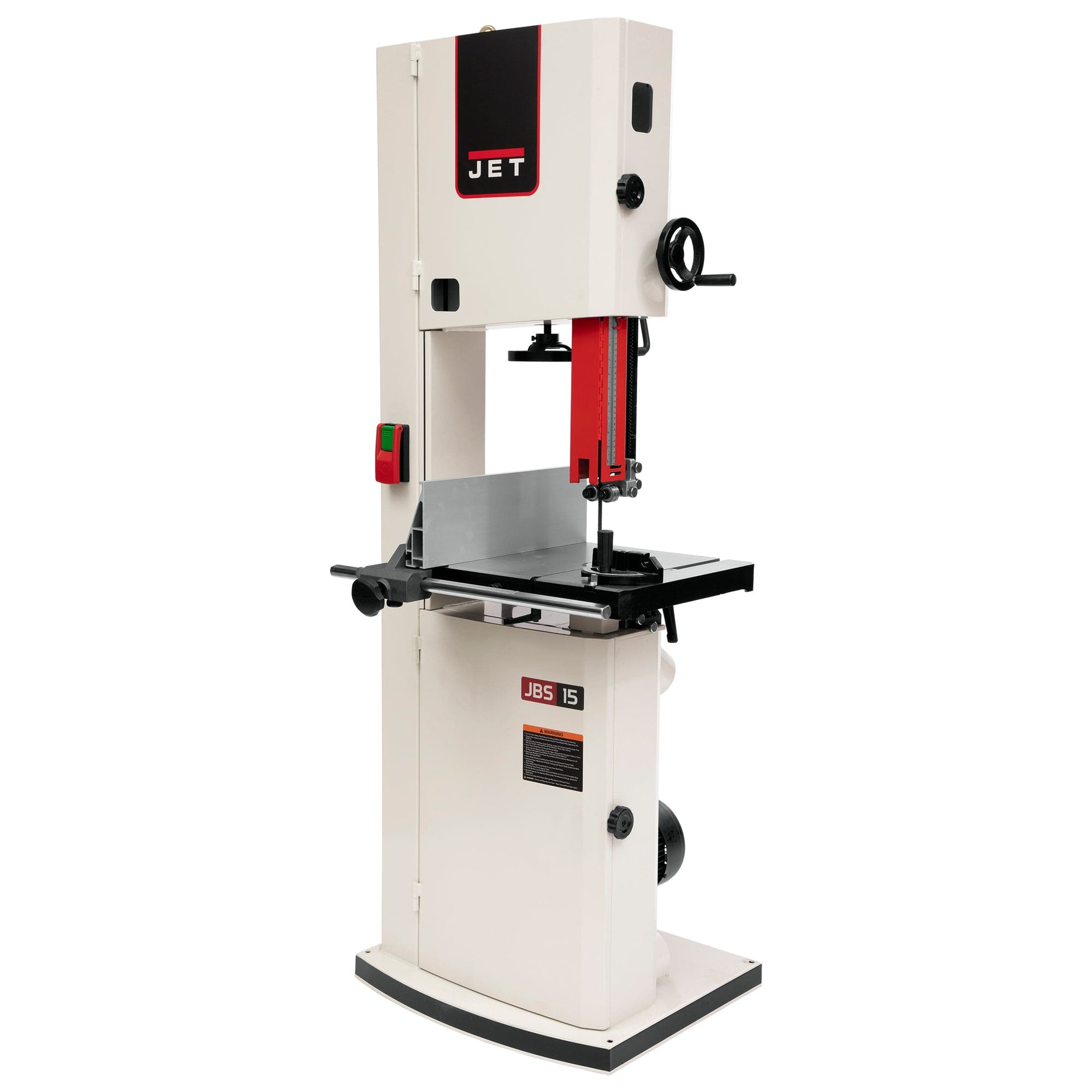

- (1) Jet® JWBS-15-3 15" Bandsaw
- (1) Bandsaw Blade - Hook - 133" x 1/2" x 0.0256" - 6 TPI
- (1) Rip Fence/Resaw Fence
- (1) Miter Gauge
