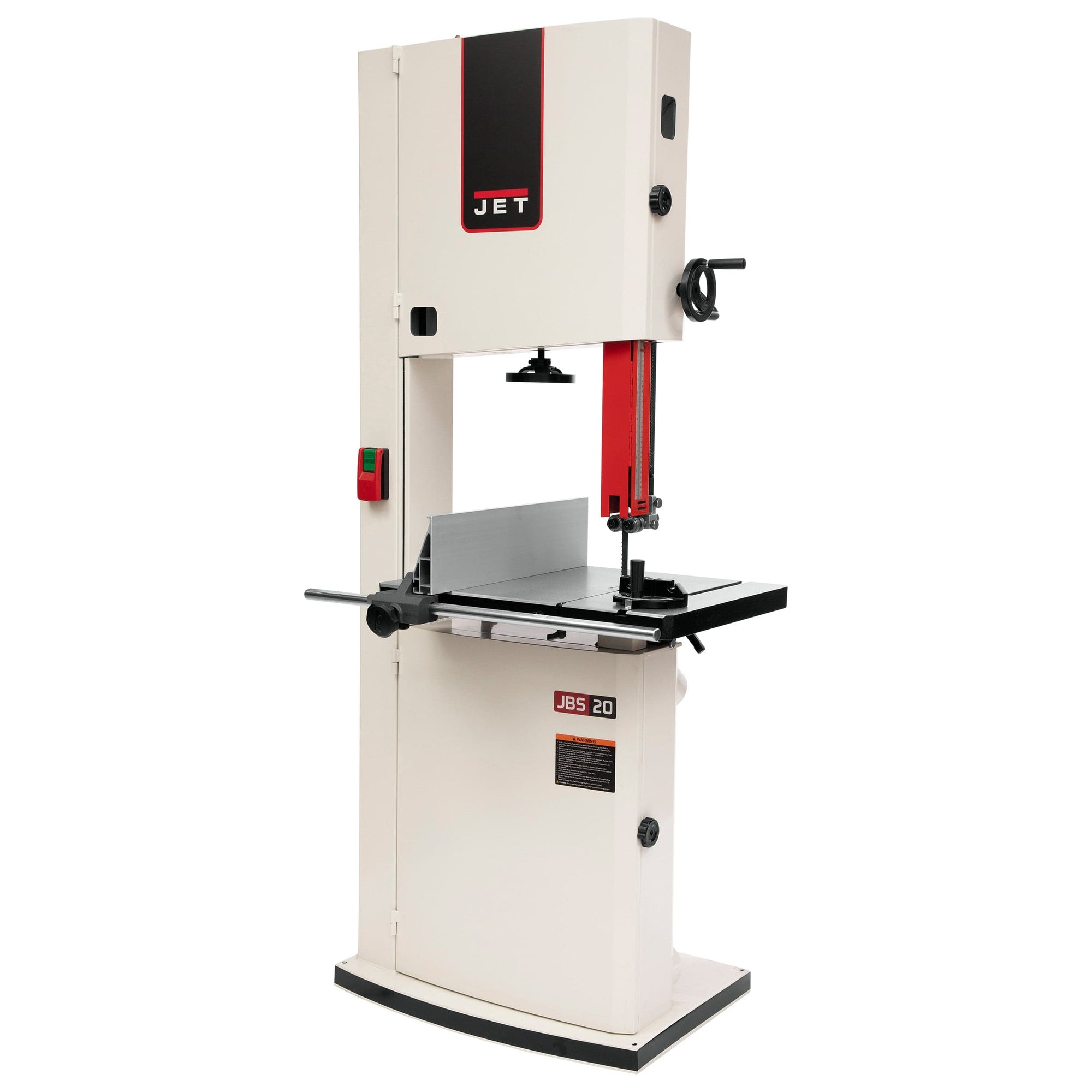

More re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The Jet® JWBS-20-3 20” steel frame bandsaw is engineered to build great projects through superior performance. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up.
Bandsaw Specs: What They Mean & Why They Matter:
- Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.
- Resaw Height – The maximum board thickness the saw can slice vertically.
- Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.
- Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.
- Table Size – Affects how well the saw supports and stabilizes your workpiece.
- Construction Material – Heavier material better absorbs vibration and adds stability.
Features:

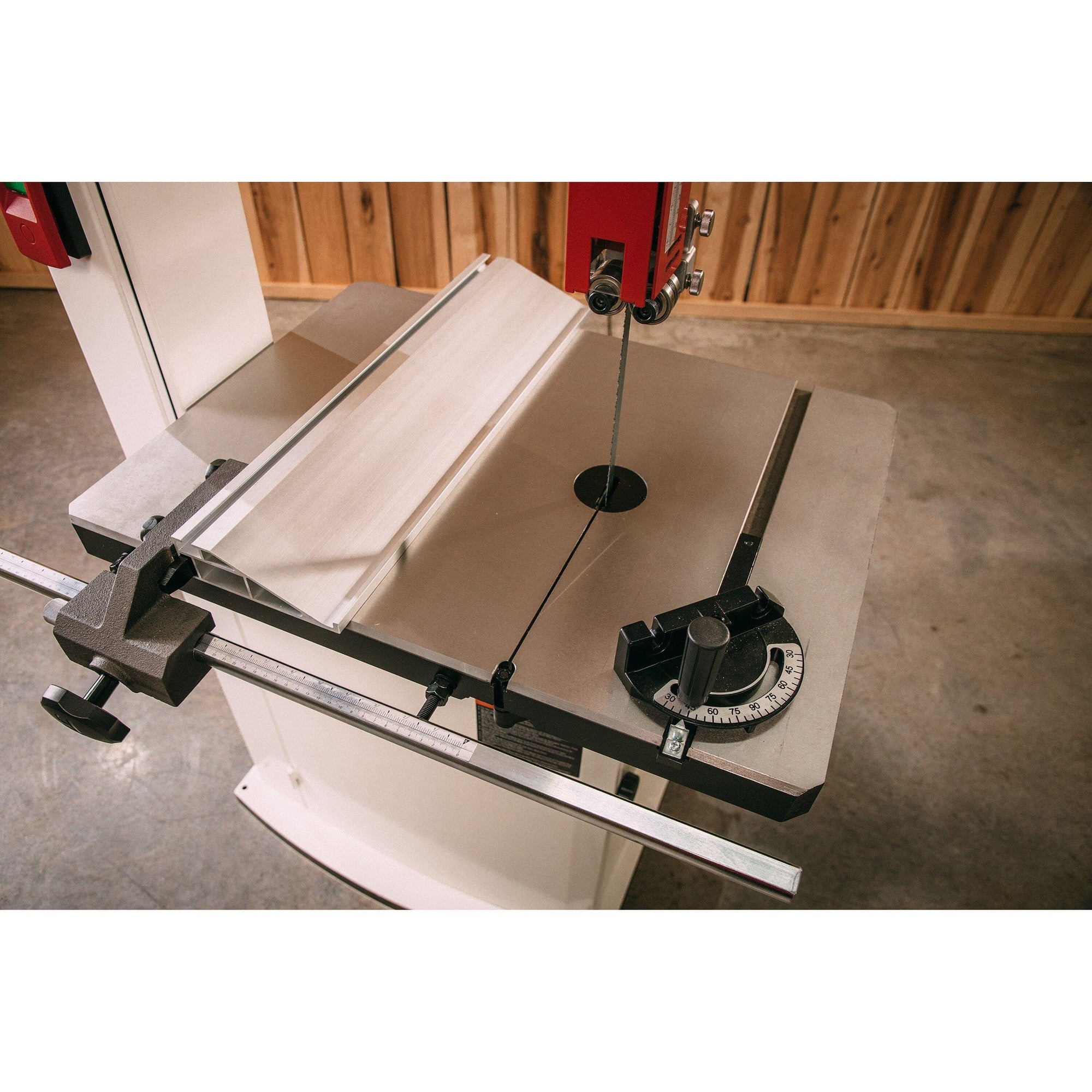

- 27-1/4 x 20" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides

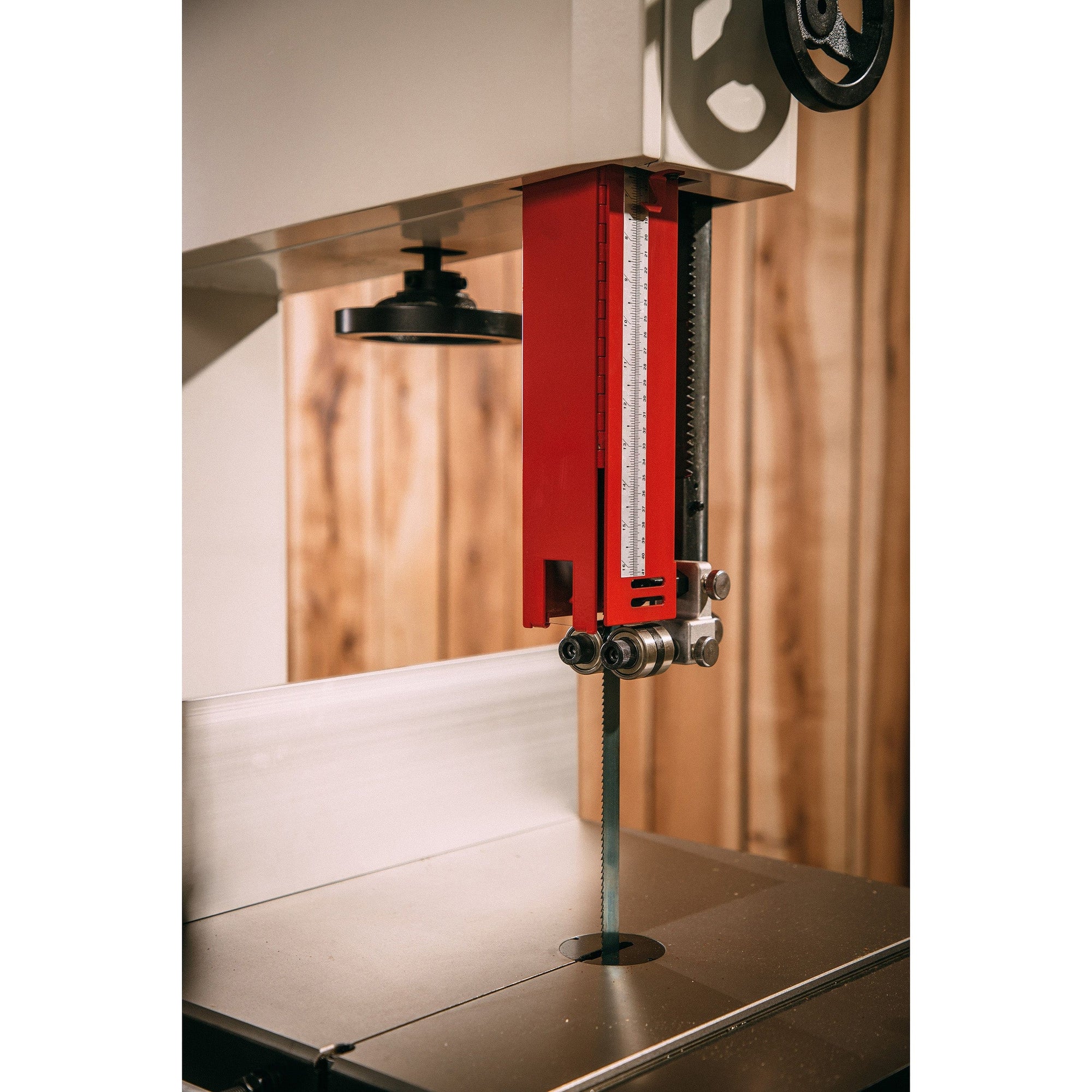

- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking

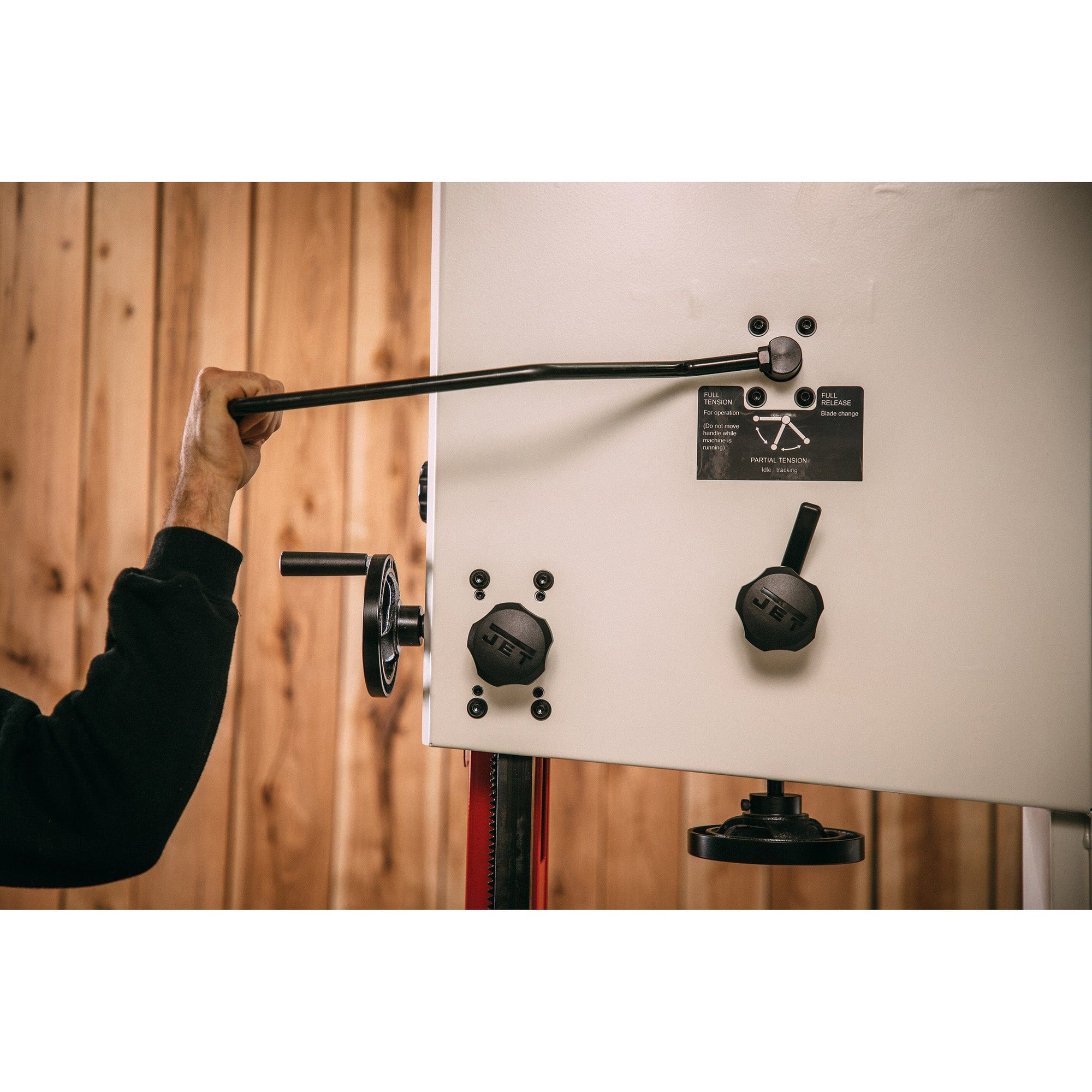

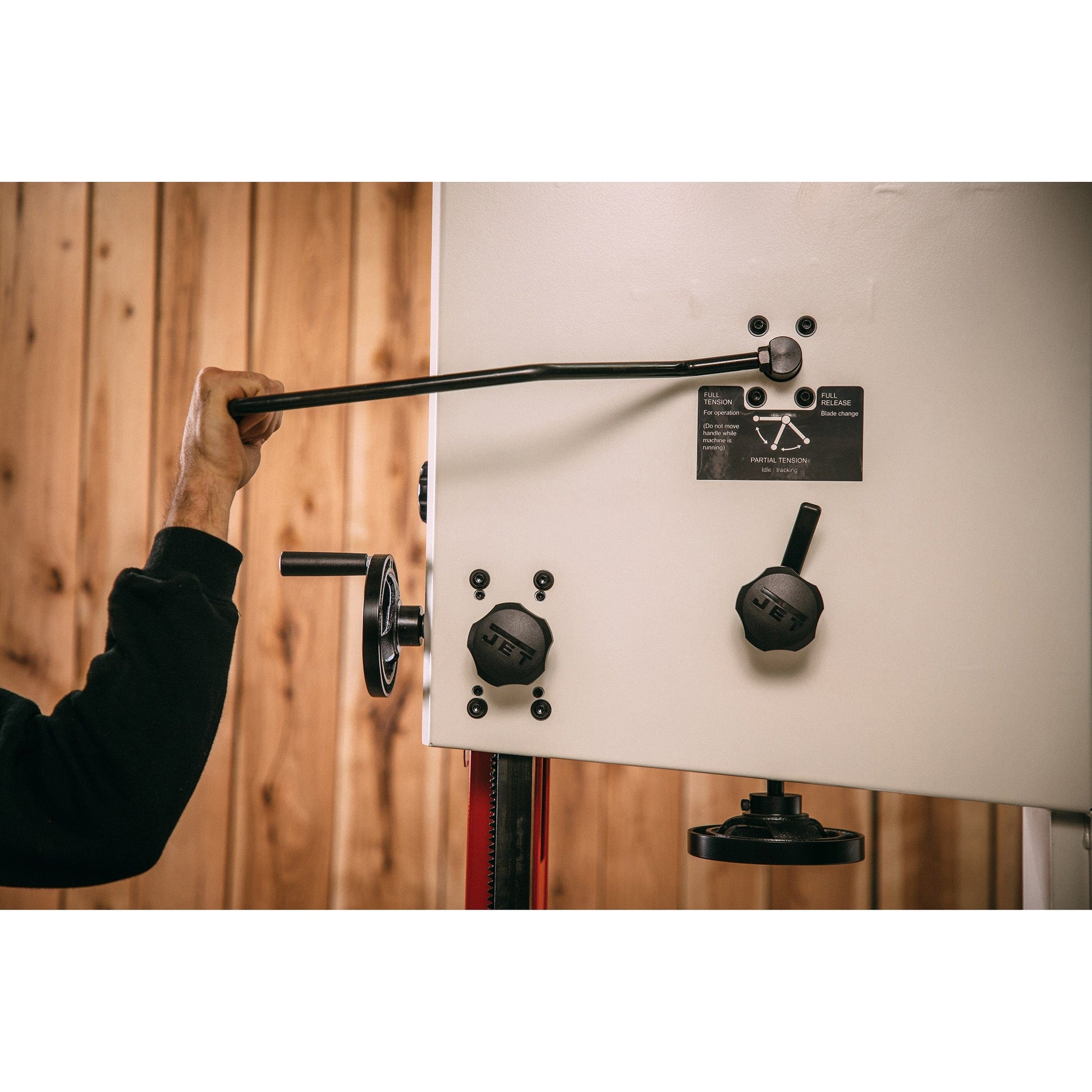

- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

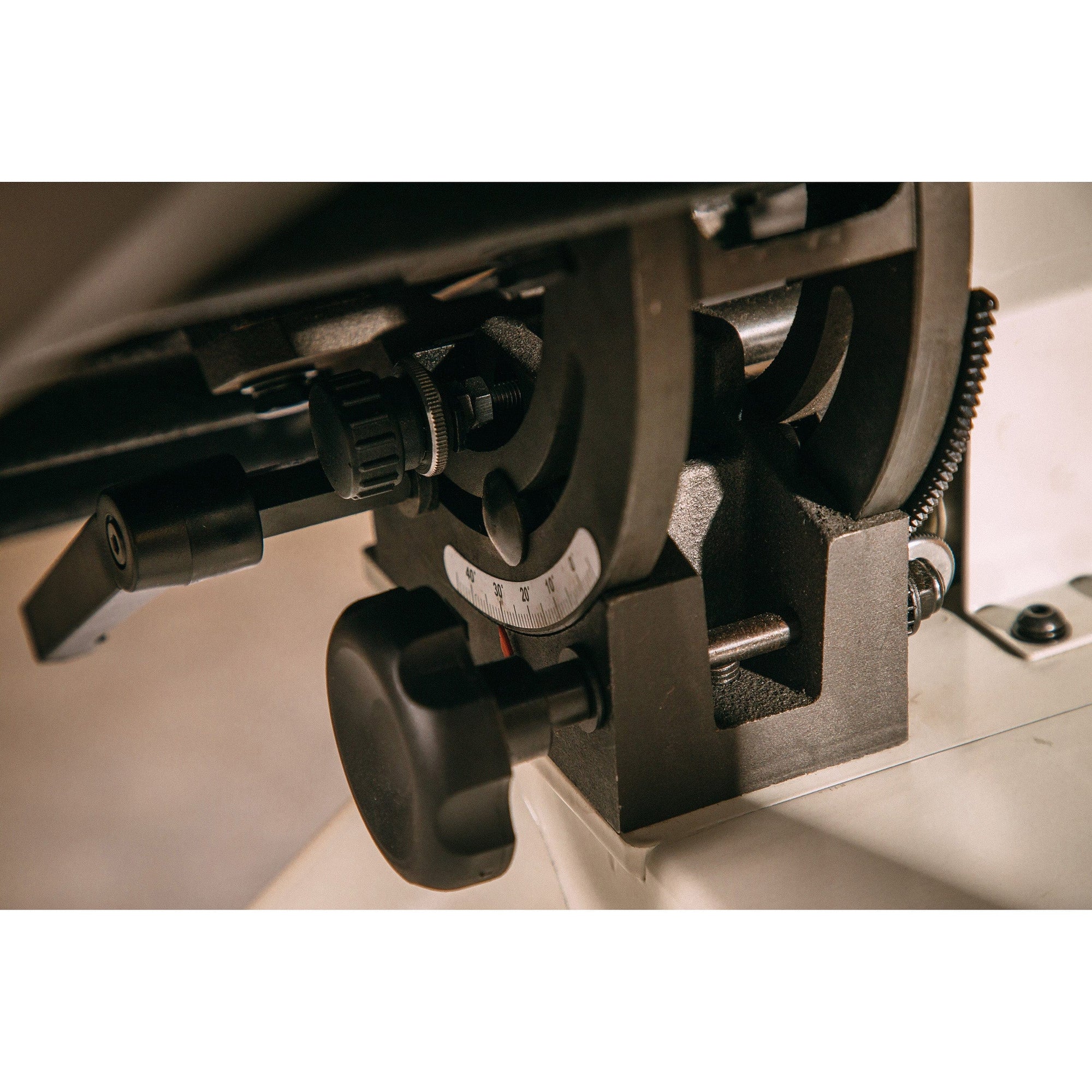

- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
-
Round table insert features leveling screws for precise adjustment
Specifications:
- Motor HP: 3 HP
- Voltage: 230V
- Phase: 1 PH
- Amps (if applicable): 12A
- Max Resaw Height: 16"
- Max Cutting Width: 20"
- Wheel Size: 20-¼"
- Wheel Material: Cast Iron
- Quick Blade Release: Yes
- Blade Length: 158"
- Blade Width Range: 1/8" - 1-½"
- Blade Speed: 2,530 / 4,850 SFPM
- Blade Guide Type: Tool-less adjustable
- Table Size: 27-1/4" x 20"
- Table Tilt (L/R Degree): 5°/45°
- Table Material: Cast Iron
- Dust Port Size: 4" (2)
- Height: 75"
- Footprint: 37" L x 33-1/8" W x 88" H
- Warranty Information: 5-Year Limited Warranty
What's Included:
- (1) Jet 20" Woodworking Bandsaw - 3 HP 1 PH 230V - JWBS-20-3
- (1) Rip Fence/Resaw Fence
- (1) Miter Gauge
- (1) Bandsaw Blade - Hook - 158" x 1" x 0.035" - 3 TPI
